Re: A Few New Projects

111
I realize the 'laminating' comment was cryptic. the design changes are as such:
-better geometry at the headstock, moving the E tuners outward by about 3-4mm
-utilizing a one piece tele-style bridge w/ HB pickup opening
-using the thinner 5/8" billet
-laminating a 1/8" billet under the fretboard to raise that (eliminating a machining step)
-laminating a 1/8" spacer under the tuners, so the headstock can be machined to 3/8" thick with better string break angle

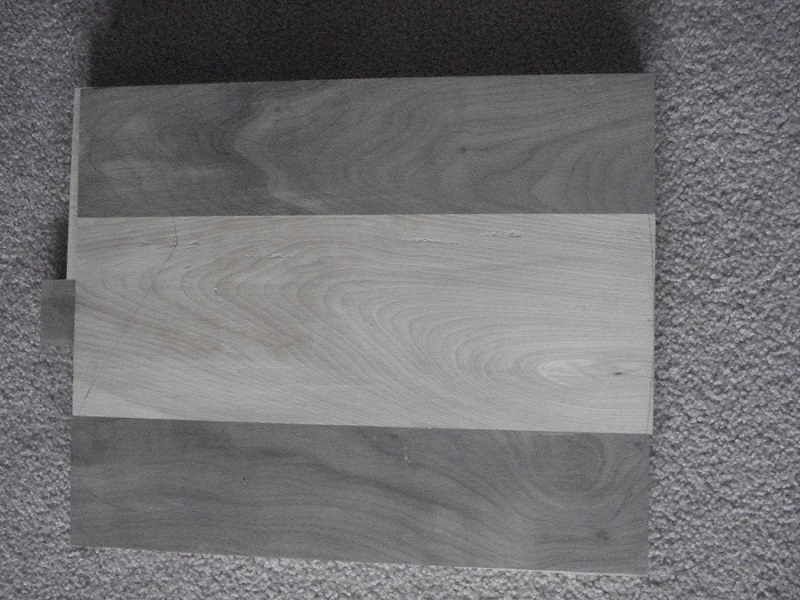

-purpose built body (birch/walnut)-tele style.

The big technical change is machining the openings and weight relief areas, rather than drilling/cutting. Should make for a much more 'commercial' looking finished product.

last night was our record release show, and going to a hockey game tonight...so will try to catch up and finish a few more steps on Sunday.

Re: A Few New Projects

113

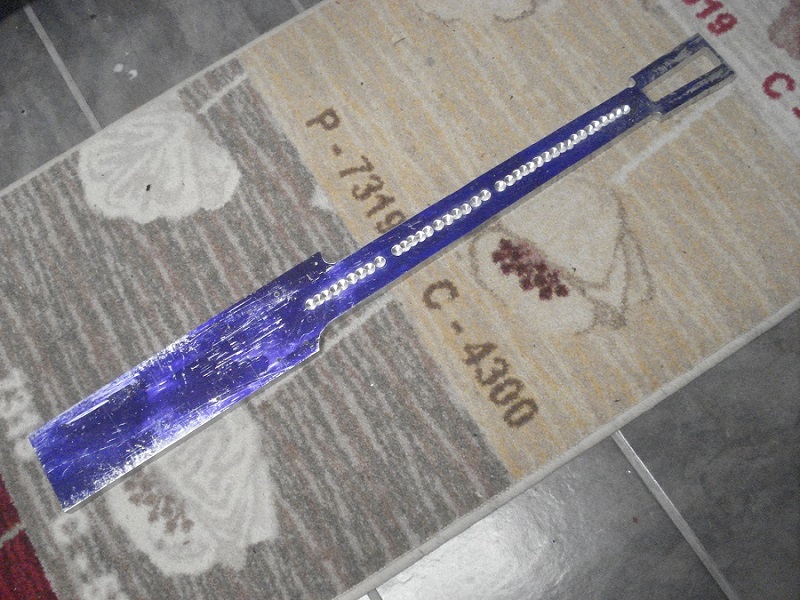

had a couple good hours to cut/route/drill. aside from my drill press trying to shit the bed, everything went pretty well this week. here is the overall. The blue color is layout fluid, which allows me to scribe pretty fine lines that stand out better than sharpie.
Attachments
DSC05172.JPG DSC05172.JPG Viewed 358 times 207.1 KiB

Re: A Few New Projects

115

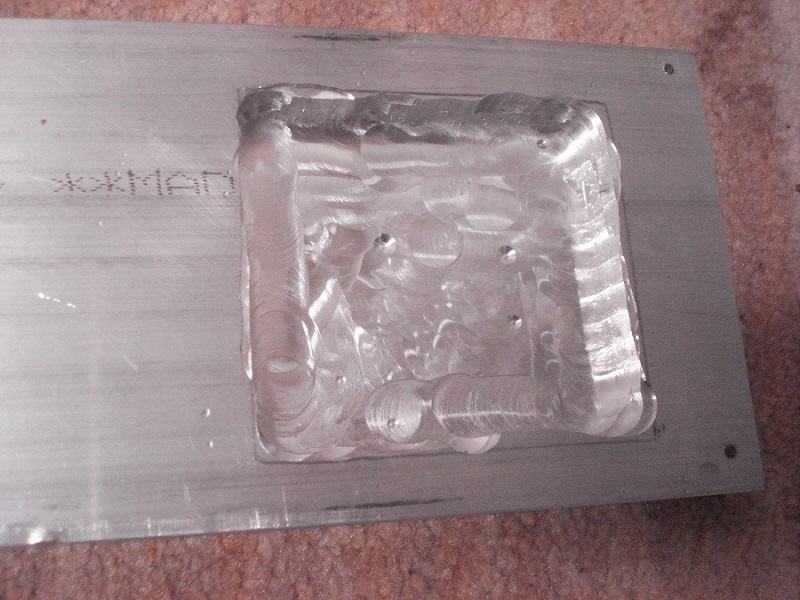

here is the rear weight relief cavity- I could only roughly machine this as I'm waiting for the correct pattern following bit. but it went well, will not require a dumb cover, and took out about 3oz. the blank weighed 8/14, we're down to 5/9 as it sits.
Attachments
DSC05174.JPG DSC05174.JPG Viewed 355 times 163.79 KiB

Re: A Few New Projects

117
Progress has slowed to a crawl. It seems like all of my machinery has decided to shit the bed at the same time. Nothing major, but our new 'we don't keep those in stock, you'll have to order' culture around tools and hardware is super annoying.

handheld belt sander blew the last belt. --ordered
stationary belt sander blew the last belt --ordered
Bandsaw wood blade gave up the ghost --ordered
Drill press chuck has decided not to stay on the spindle anymore --may end up using super glue, per old-timer recommendations.

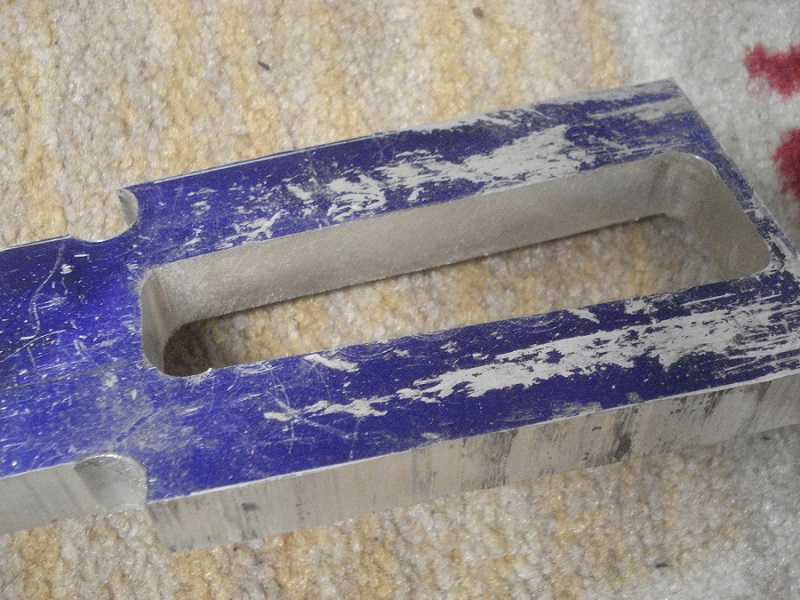

Yesterday I got the pickup cutouts finished. Today I added some depth and cleaned up the weight relief in the neck and started the weight relief between the pickups. Down to 4lbs 13oz at the moment.

Re: A Few New Projects

119

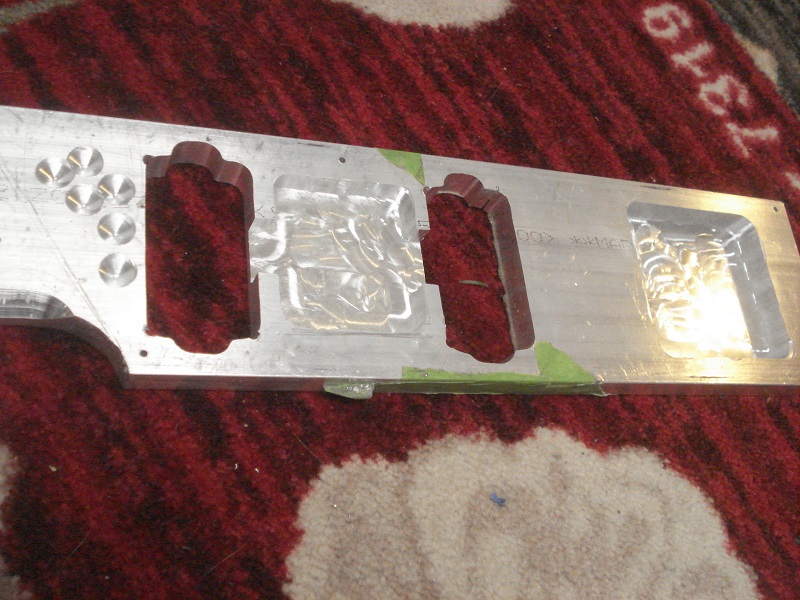

Sunday weekly update: Receiver- has been finish-routed for weight relief from the back. Destroyed an old chamfer bit removing material from the shoulders of the neck. This coming week I will machine the headstock angle.
Attachments
DSC05256.JPG DSC05256.JPG Viewed 528 times 191.37 KiB
DSC05255.JPG DSC05255.JPG Viewed 528 times 195.87 KiB

Re: A Few New Projects

120
Sunday weekly Update: Body: I spent much more time this week on the body. Got it shaped, added arm and belly cuts, and got the 'pocket' and control cavity routed. I think it looks pretty good. Body is down to 4lbs 5oz and the receiver is down to 4lbs 6oz.
Attachments
DSC05254.JPG DSC05254.JPG Viewed 515 times 203.41 KiB
DSC05253.JPG DSC05253.JPG Viewed 515 times 155.96 KiB
